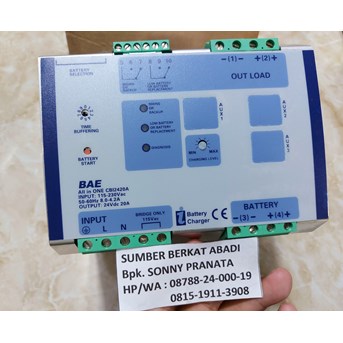

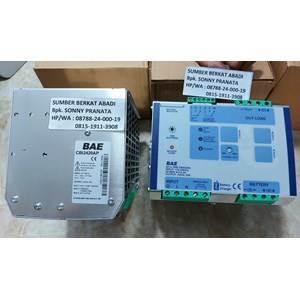

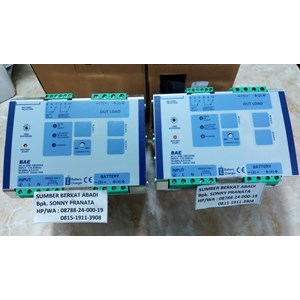

INTELLIGENT BATTERY CHARGER BAE CBI2420AP CBI-2420AP CBI 2420AP - 24V 20A 1 PHASE - DC UPS ALL IN ONE - DIN RAIL - GENUINE ITALY
Brand = BAE
Part Number = CBI2420AP
Description = Intelligent Battery Charger
Input = 115 - 230 VAC : 50 - 60 Hz : 8 - 4.2 A
Output = 24 VDC : 20 A : 1 Phase
Dimensions (w-h-d) = 150x115x135 mm
Style = DIN Rail
Factory = Made in Italy
BAE - GENUINE PRODUCT 100%
Input = Single-phase 115 – 277 Vac
Output Load = power supply 24 Vdc ; 20 A
Output Battery = charging 24 Vdc ; 20 A
Suited for the following battery types: Open Lead Acid, Sealed
Lead Acid, lead Gel and Ni-Cd
Automatic diagnostic of battery status. Charging curve IUoU,
constant voltage and constant current Battery Life Test function
(Battery Care)
Switching technology, output voltage 22-28.8Vdc Three charging
levels = Boost, Float and Recovery
Protected against short circuit and inverted polarity
Signal output (contact free) for discharged or damaged battery
Signal output (contact free) for mains or Back-UP
Protection degree IP20 - DIN rail ; Space saving
Technical features
Thanks to the All In One units (DC-UPS), it will be possible to optimize power management. The
available power is automatically allocated between load and battery, supplying power to the load is
the first priority of the unit thus it is not necessary to double the power, because also the power
going to the battery will go to the load if the load so requires. The maximum available current on the
load output is 2 times the value of the device rated current In. We call “Battery Care” the concept
base on algorithms that implement rapid and automatic charging, battery charge optimization during
time, flat batteries recovery and real time diagnostic during installation and operation. The Real Time
Auto-diagnostic system, monitoring battery faults such as, battery Sulfated, elements in short circuit,
accidental reverse polarity connection, disconnection of the battery, they can easily be detected and
removed by help of Blink Code of Diagnosis Led; during the installation and after sell. The continuous
monitoring of battery efficiency, reduces battery damage risk and allows a safe operation in
permanent connection. Each device is suited for all battery types, by means of jumpers it is possible
setting predefined curves for Open Lead Acid, Sealed Lead Acid, Gel, Ni-Cd (option). They are
programmed for two charging levels, boost and charge, but they can be changed to single charging
level by the user. A rugged casing with bracket for DIN rail mounting provides IP20 protection degree.
They are extremely compact and cost-effective.
